Since I was putting a new clutch in the incubator I thought I would get a few pictures to post.

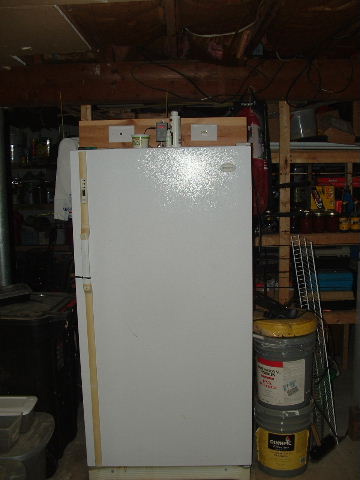

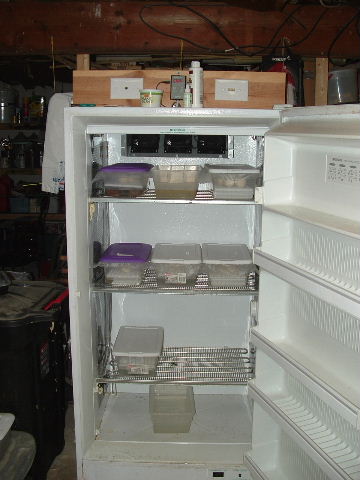

I made this from a used upright freezer that our local appliance store was disposing of for a client. They gave it to me free of charge and had even taken out the refrigerant. I removed the motor and all the other stuff that was not needed. I then added a fan inside to circulate air and regulate temps evenly throughout the unit. Actually the fan unit has three fans built in it but I only wired one. I adding 11” heat tape to both sides for heat and a helix thermostat. I have three electronic thermometers to check the unit temps from top to bottom and it stays within .7 degrees top to bottom with the fan on. I currently have five clutches in the unit and it can hold twenty tubs. It works very well we have hatched four clutches from this incubator thus far.
What do you think, do I need any improvements and what are you using, pictures of your setup are welcomed.
May you all be blessed with a great season.
I made this from a used upright freezer that our local appliance store was disposing of for a client. They gave it to me free of charge and had even taken out the refrigerant. I removed the motor and all the other stuff that was not needed. I then added a fan inside to circulate air and regulate temps evenly throughout the unit. Actually the fan unit has three fans built in it but I only wired one. I adding 11” heat tape to both sides for heat and a helix thermostat. I have three electronic thermometers to check the unit temps from top to bottom and it stays within .7 degrees top to bottom with the fan on. I currently have five clutches in the unit and it can hold twenty tubs. It works very well we have hatched four clutches from this incubator thus far.
What do you think, do I need any improvements and what are you using, pictures of your setup are welcomed.
May you all be blessed with a great season.
